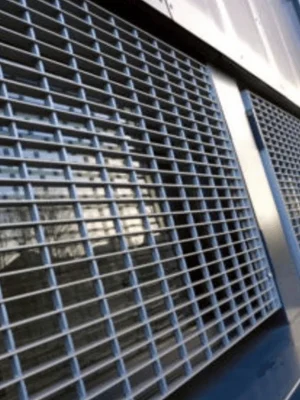

Steel Grating is a high-strength, load-bearing flooring solution manufactured by welding or pressure-locking bearing bars and cross bars. It provides excellent ventilation, drainage, slip resistance, and durability, making it ideal for industrial, commercial, and infrastructure applications.
Power Greate Trading is one of the leading supplier of stainless steel grating, electro forged grating, press-locked steel bar gratings, heavy duty gratings, aluminum gratings.

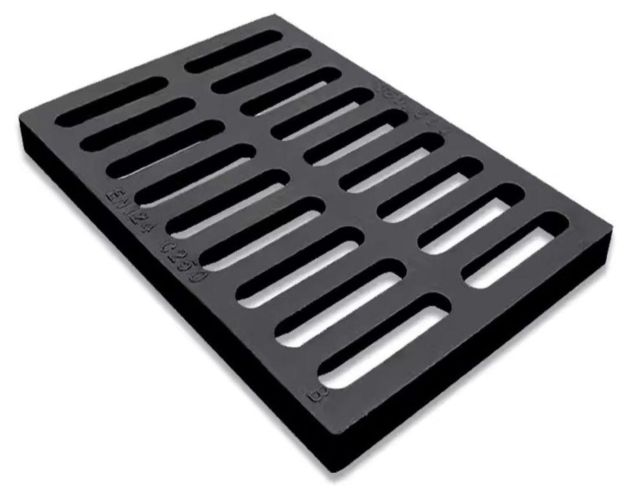

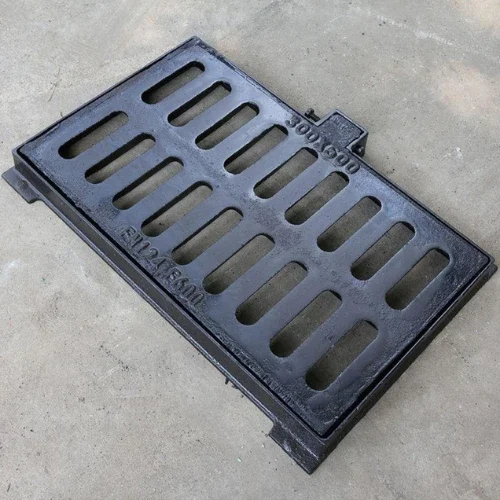

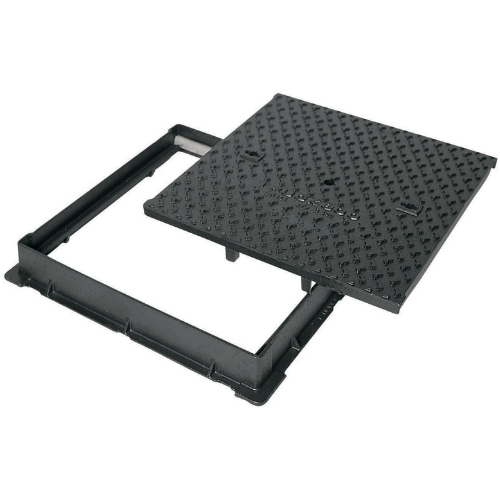

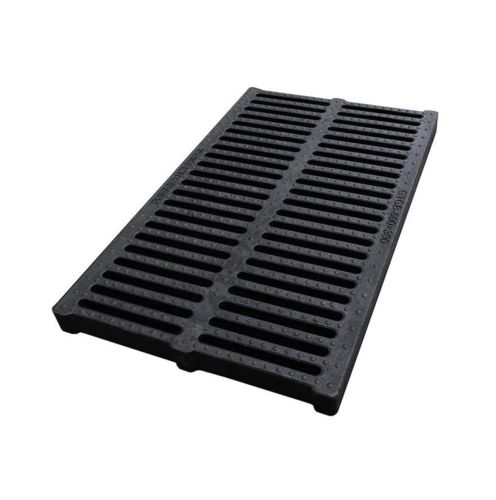

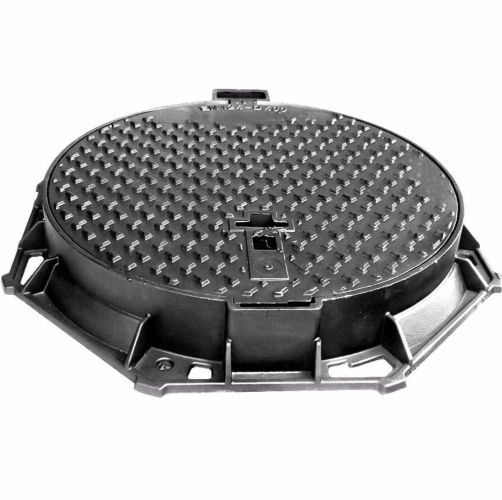

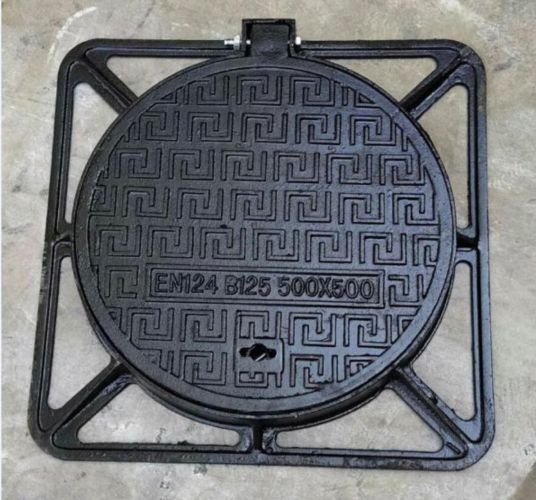

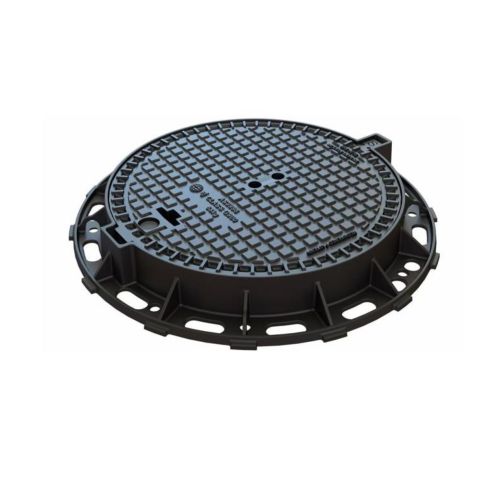

Ductile Iron Manhole Grating

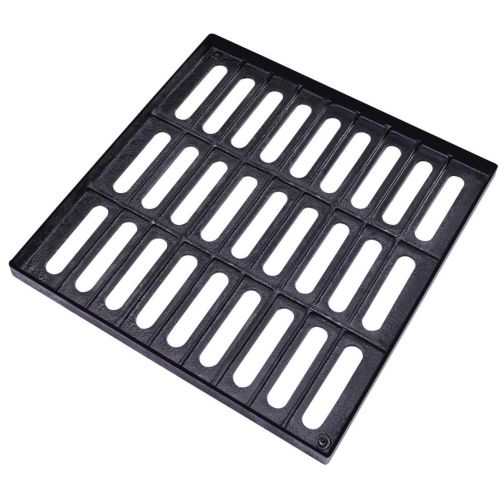

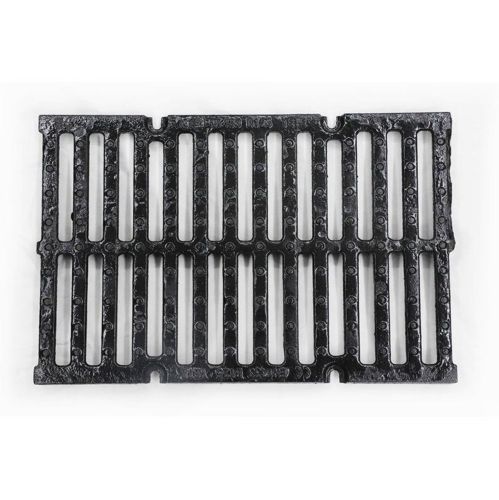

The advantage of the cast and ductile iron grates is their strength, coming directly from the manufacturing procedure, where they are poured as a single unit, not requiring secondary joins in the design. R&S Grating stock cast iron grates in Class B (light duty), Class C (medium duty), and Class D (heavy duty) of AS3996. Ductile iron sump grates are stocked in Classes E – G (extra heavy duty) of AS3996.
Cast and ductile iron sump grates are available in a variety of patterns, however, the standard design is with rectangular holes with curved ends, as shown in the picture on the left. Different sizes and class ratings have varying numbers of ribs, the details of which can be seen on the product image for individual products. Specialty sump grates are also available in cast iron, with a variety of patterns available, offering an aesthetically unique vibe to your installation area.
Available Products
Cast and ductile iron sump grates are stocked in a variety of sizes in:
- Class B (light duty)
- Class C (medium duty)
- Class D (heavy duty),
- Classes E – G (extra heavy duty) of AS3996.

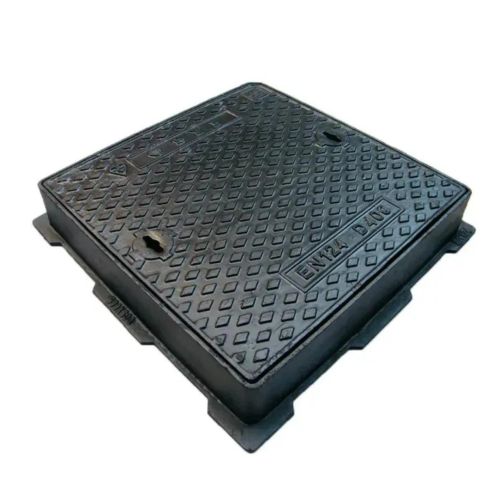

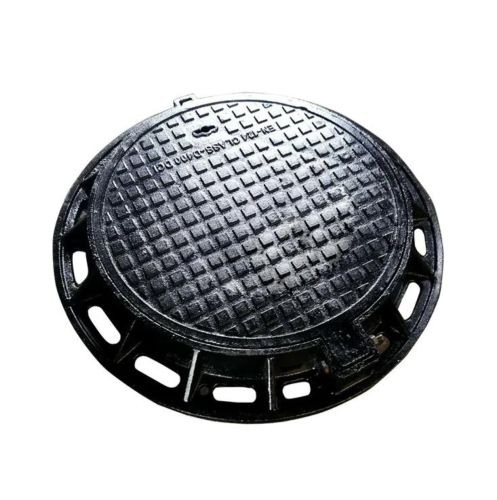

Power Greate Trading SPS LLC., is a leading ductile iron manhole supplier in UAE and Middle East regions. Based in UAE, we provide our clients with a full service and quality-focused supply of precise custom-made products, making us stand out from the rest of the supplying companies. Our top priority is our customers’ satisfaction. The quality of the outputs to be delivered is always checked at each phase of the production process. We ensure that no product leaves our industry without having verified the aptness and confirmed that each specification has been met

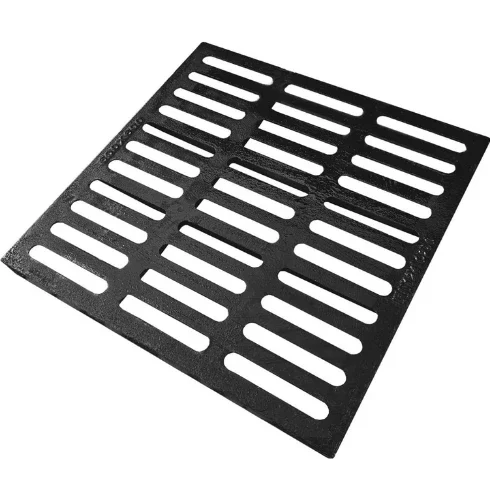

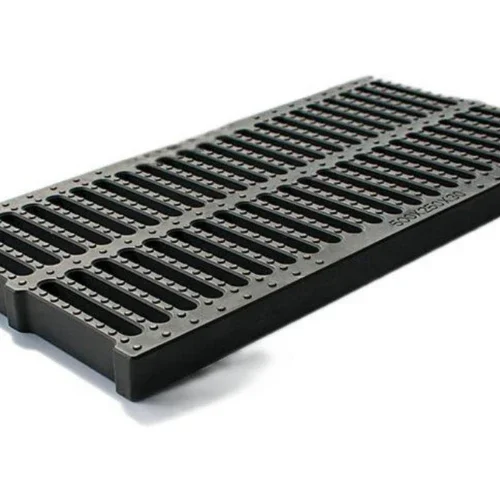

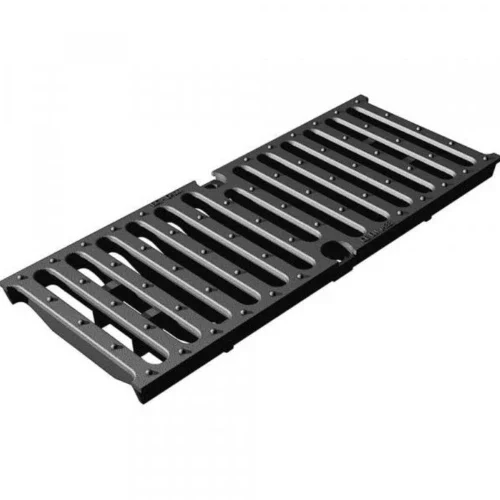

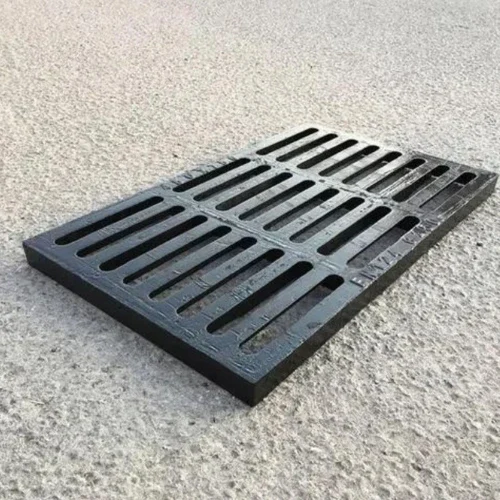

Ductile Iron Grating

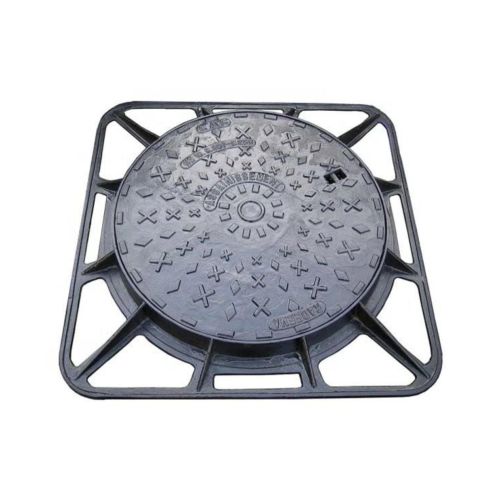

Manhole Grating

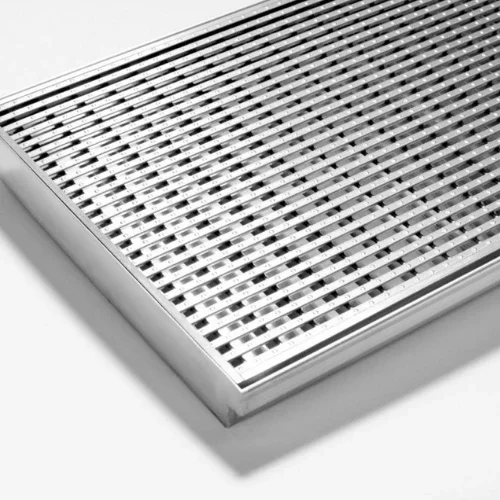

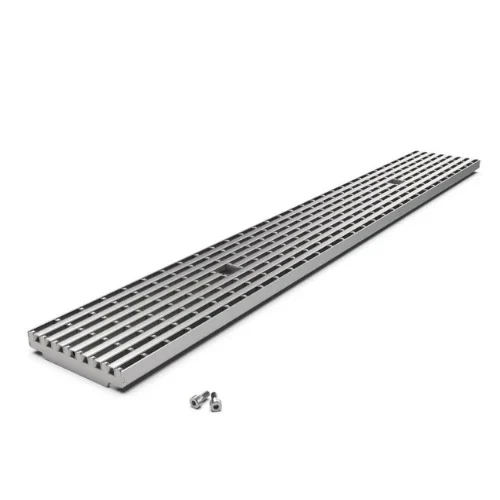

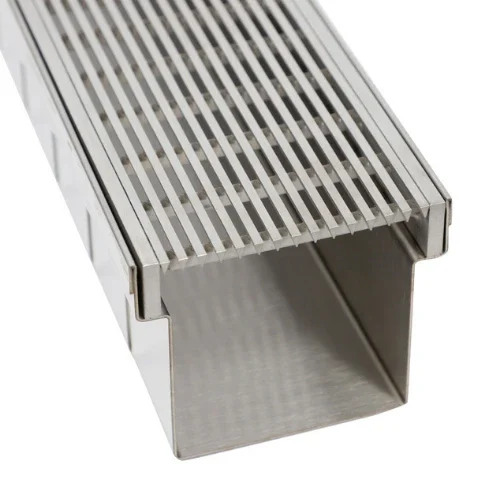

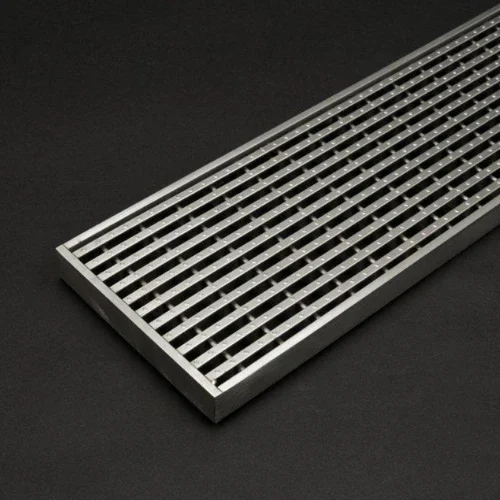

Stainless steel Grating
Stainless steel products are suitable for a wide variety of vertical applications such as balustrades and screening, as well as prestigious flooring, where there is a requirement for a superior product, which is bright and attractive with low maintenance costs. Two different grades are available: AISI 304 for general purpose; AISI 316 and AISI 316L for external use, exposure to harsh substances or marine conditions.All stainless steel gratings are pickled and electro polished for low surface roughness and maximum corrosion resistance. We continuously improve product quality and production scale. They are widely used in petroleum, chemical, ports, power, transportation, papermaking, foodstuff, medicine, steel, municipal, real estate, manufacturing, etc.
Technical Specifications
Load Bar Depth: 20, 25, 30, 32, 35, 38, 40, 45, 50, 60 up to 150 mm.
Load Bar thickness : 3, 4 5, & 6 mm
Cross Bar Type : Flat Bar or Round Bar
Cross bar Depth : In Flats, 10, 12, 15, 20mm and in Round bar 5mm & 6mm dia.
Load Bar Type : Plain or Serrated.
Finish : Mill Finish or electro polished.

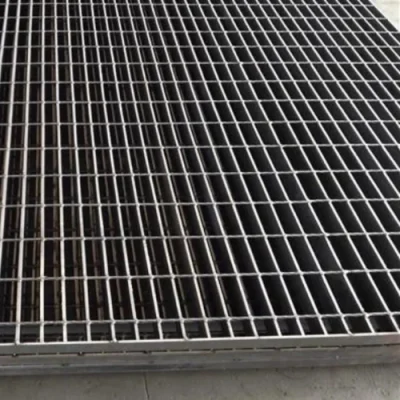

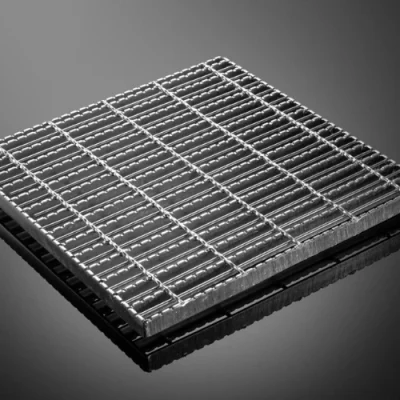

Electro-Forged Gratings
Electro-Forged Gratings type is most commonly used compared to all other grating types due to its strength, Durability, cost efficient production and ease of installation. Commonly used in most general Industrial plants as well as Architectural buildings, it has wide applications as Pedestrian Traffic, platforms, safety barriers, drainage covers and ventilation grates Etc.
Fabricated Electro-Forged Gratings is precisely fabricated to conform the standards and specification under National Association of Architectural Metal Manufacturers (NAAMM). Gratings can be fabricated to suite any angle with Banding, Cutting, Curve or line needed.

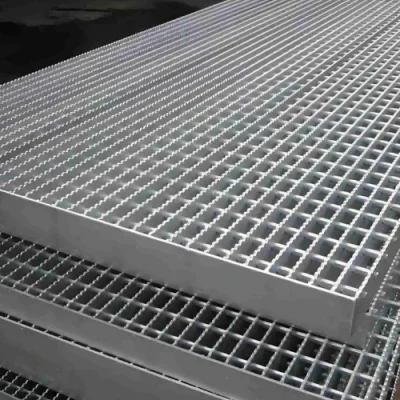

Aluminum Gratings
Aluminum gratings can take advantage of a useful combination of the materials characteristics. It has a high load carrying capacity, low weight and good rigidity. Making it suitable for sun screening, façade coverings, staircases and ceiling panels. When combining the high resistance to corrosion and adding the anti-slip serrations the grating becomes ideal walkway and stair tread material for many of the harsher industrial environments.
Types of Aluminum Grating products :
Swage-Locked Rectangular Bar Aluminum Grating uses the swaging process to permanently lock the cross rods (positioned every 2″ or 4″) to the rectangular bars
Swage-Locked I-Bar Aluminum Grating is the most widely used and provides the strength equal to a rectangular bar of the same depth, but at far less weight and cost. The I-bars are permanently locked to the cross rods (positioned every 2″ or 4″) by a swaging process.
Press-Locked Rectangular Aluminum Bar Grating is constructed with the two close-tolerance slotted bars bonded together (positioned every 2″ or 4″) using tremendous hydraulic pressure. Permanent locking is achieved by forcing the deep cross bar into the bearing bar. Both the cross bars and the bearing bars provide walking surfaces in the press-locked design

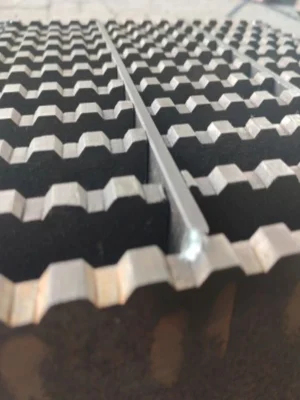

Heavy-duty steel grating is economical, having excellent load characteristics and a slip-resistance surface. The Heavy Duty style handles a heavier load than other steel gratings, adds angle noising, and provides additional support along the back edge of the tread to provide superior strength.

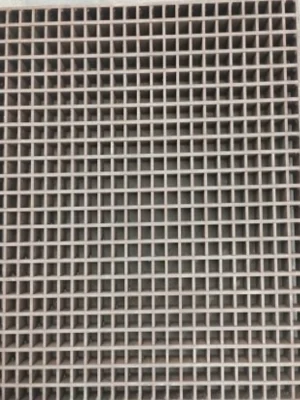

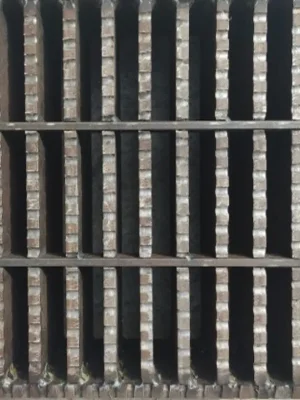

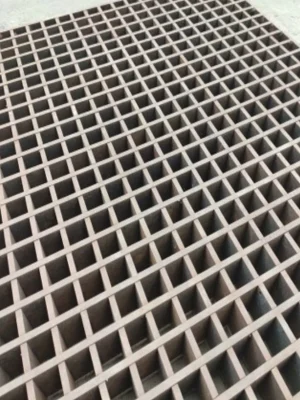

Floor Grating – Heavy Duty
The load bearing bars are produced from steel which conforms to the following equivalent standards: AS3679 Grade 250, BS4360 Grade 43A and ASTM A36 or equivalent. Serrated surface (serrated bar), banded with the same size flat bar (end banding type), hot dip galvanized.
The minimum average hot dip galvanized coating required by standards AS1650, BS729 and ASTM A123 is 610gms/sq meter (the minimum average thickness of galvanized coating must be 87.14μm).
Width: 600mm / 900mm / 1200mm
Length: 1000mm – 1800mm

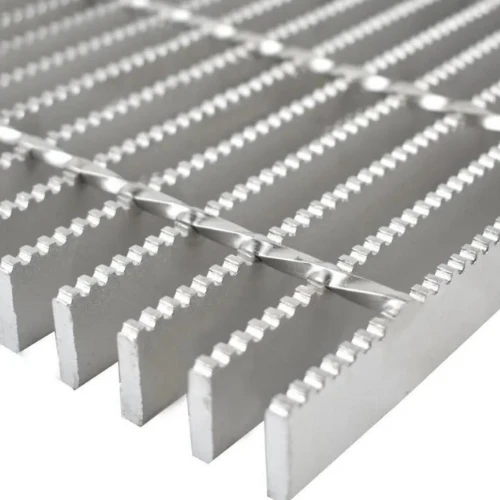

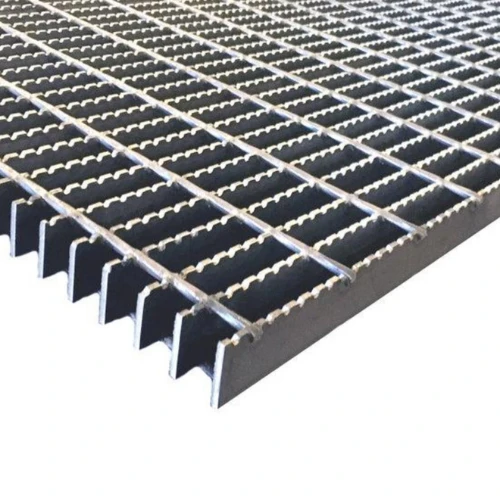

Press-Locked Steel Bar Grating
Pressure lock bar grating is a kind of high strength grating. It is a product featuring unique combination of uniformity and precision. It has light structure, elegant style, beautiful and natural design and it is maintenance-free. Press-locked steel grating is used in civilian and commercial buildings, theatres, subway, suburban railway, and other municipal engineering.Press Locked grating is available in two types;
- Press-locked – where Load Bars are notched and then interlocked with Cross Rods.
- Full-locked – Load Bars and Cross Rods of equal heights are notched then interlocked with one another under extreme pressure.
- Pressed grating general specifications:
1. Type: RR-3-35/33 × 33
2. Bearing bar: (35 × 3)mm
3. Cross bar: (10 × 3)mm
4. Mesh size: (33.33 × 33.33)mm
5. Surface: Plain
6. Material: Steel grade S 235JR have under-gone hot galvanized surface treatment
7. Border finish: Profile border
8. Fastening set: Top Saddle, bolt nut and lower bracket, hot dipped galvanized, 04 nos. for each grating panel
1a)Panel Size (L × W × H):1000 × 1000 × 35mm (The first dimension 1000 indicates the bearing bar dimension)
1b) Panel Size (L × W × H):1000 × 500 × 35mm (The first dimension 1000 indicates the bearing bar dimension)
- Grating treads general specifications:
- Type: TR-3-30/33 × 33
- Bearing bar: (30 × 3)mm
- Cross bar: (10 × 3)mm
- Mesh size: (33.33 × 33.33)mm
- Surface: Plain
- Material: Steel grade S 235jr have under-gone hot galvanized surface treatment
- Nosing: Toe edge
- End mounting plate: Sides of mounting plates 60 × 3mm (preferable 60 × 6mm) with holes. Rear of profile border 30mm high.
2a) Tread Size (L × W × H): 1200 × 305 × 30mm (The first dimension 1000 indicates the bearing bar dimension)
2b) Tread Size (L × W × H): 1000 × 305 × 30mm (The first dimension 1000 indicates the bearing bar dimension)

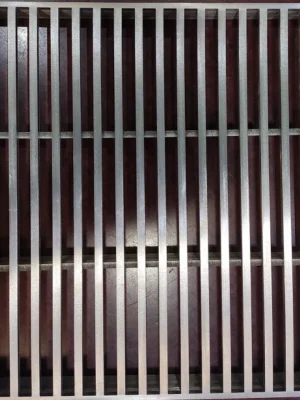

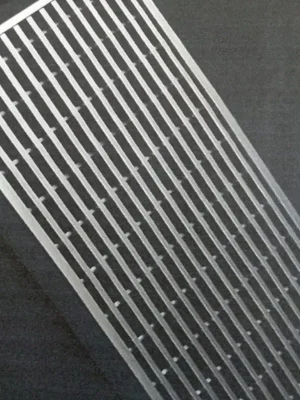

Heel Safe Grating
Power Greate Trading SPS LLC-leading stainless steel heel safe grating supplier in UAE and Middle East regions. Based in UAE, we provide our clients with a full service and quality-focused supply of precise custom-made heel safe grate products, making us stand out from the rest of the supplying companies.
Power Greate based out in Ajman UAE is one of the top supplier across all regions of UAE – Sharjah, Ajman, Abu Dhabi, Dubai, Fujairah, Ras Al Khaimah, Umm Ul Quwain, and other GCC countries like Oman, Saudi Arabia, Kuwait, Bahrain, Qatar, etc. for different variants of Heel Safe Grating Products.
Heel-safe Gratings are narrow slotted grates, quality designed access covers, and slip resistance which complies with all safety standards. Galvanized Iron Hot Dip Heelsafe Anti Slip Trench Grate which is Zinc-coated of width 666mm and are available with Anti-Slip grates and discreet access covers. Power Greate one of the licensed suppliers of galvanized steel, heel safe grating product which 100% ensures heel and wheel safety. Our heel-safe grates are suitable for all weather conditions and are ready to land from widest heel to the narrowest from trucks to cars to bikes to wheelchairs to the pointed heels.
We have a vast range of products Heel Safe Grates and Access Covers suitable for any project:
Heel Safe Grating Types
- Removable grates
- Permeable pavers
- Slotted tops
- Bespoke iron grates
- Bespoke stainless steel grates
- With a range of standard removable grates, permeable pavers, and discreet slotted tops, the designer grate range offers the widest range of Heel safe Anti-Slip grating product supply in the Middle East, Europe, and Africa.
Heel Safe Access Cover Grating
- Discreet covers for building floors
- Discreet covers for urban pavements
Our top priority is our customers’ satisfaction. The quality of the outputs to be delivered is always checked at each phase of the production process. We ensure that no product leaves our industry without having verified the aptness and confirmed that each specification has been met.
Lintel Grating
A lintel is a structural horizontal rod used to cross over an opening in a wall or between two vertical supports. Steel lintels are generally made from pre-galvanized steel. They are cut and rolled or pressed into the desired shape. Steel lintels have a better advantage because they are usually lighter and are easy to handle on the site. Since they are versatile, they can be customized according to requirements. At Power greate, we offer a broad range of lintel steel grating flooring when building elevated platforms, balcony floorings, and steel walkways for various house and also industrial applications such as oil and gas plant, renewable energies, road, rail, commercial buildings, and utilities.
Power Greate , the leading supplier of lintel gratings products in the UAE, delivering its extraordinary products and services to various construction, engineering, and other industries.
The different types of lintels include Standard cavity steel lintels, Wide inner leaf lintels, Wide outer leaf lintels, Short outer leaf lintels, Rolled steel lintels, Closed eaves lintels, Timber frame lintels, Single leaf lintels, Internal solid wall lintels, External solid wall lintels, Arch formers, and Special lintels, etc.
Our specialized team can provide full technical support including lintel scheduling, designation advice and support, and lintel fitting advice.
We provide the best range of steel Lintels and Galvanised Steel Lintels which are widely used in construction and other hard industries. We are one of the prominent suppliers based out in Ajman, UAE, and the leading supplier of Stainless Steel Lintel & Galvanised Lintel in Dubai, Sharjah, Ajman, Abu Dhabi, and Northern & Western Regions of Abu Dhabi, Ras Al-Khaimah, Umm Al Quwain and Fujairah.

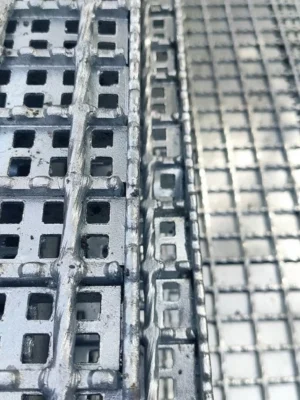

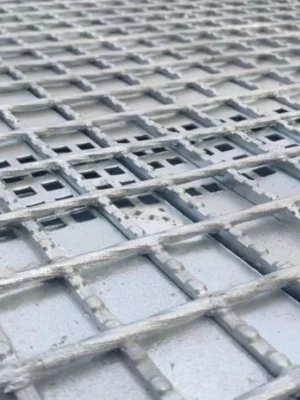

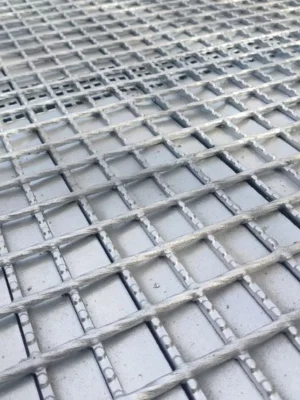

Safety Mesh Grating
Safety Metal Mesh grating usually include a wide range of mesh which is made of metal sheet or metal wire. Metal mesh grating is a set of bearing bars joined perpendicular to cross bars at equal or different intervals to create a load-bearing panel that is suitable to use as a pathway for foot-traveler and lightweight rolling traffic, which includes dollies, carts, and hand trucks. An open-grid construction provides excellent light passage, air circulation, sewerage, and this grating type is highly sustainable and only requires minimal maintenance.Power Greate specialize in custom stainless steel mesh grating fabrication. With an in-house fabrication store occupied by proficient employees, our specialists will work from your existing drawings or help outline the perfect solution from the beginning.
The common mesh size of steel gratings is 33 mm × 33 mm and 34 mm × 38 mm. According to the requirements of the customers (load, place, use, way of application), the grating mesh can be divided into different ways.
Power Greate Trading SPS LLC., is a leading safety mesh gratings supplier in UAE and Middle East regions. Based in UAE, we provide our clients with a full service and quality-focused supply of precise custom-made products, making us stand out from the rest of the supplying companies. Our top priority is our customers’ satisfaction. The quality of the outputs to be delivered is always checked at each phase of the production process.

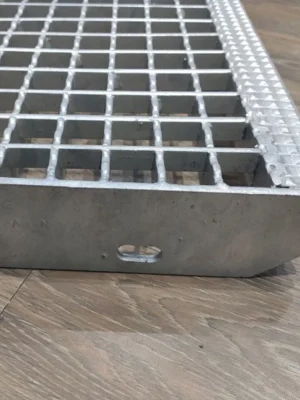

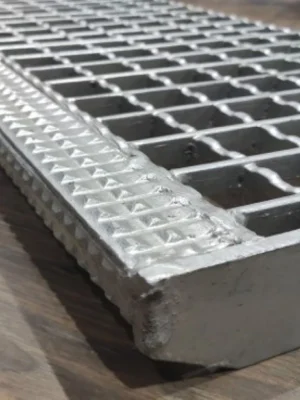

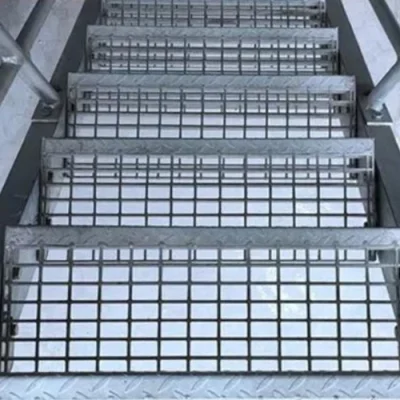

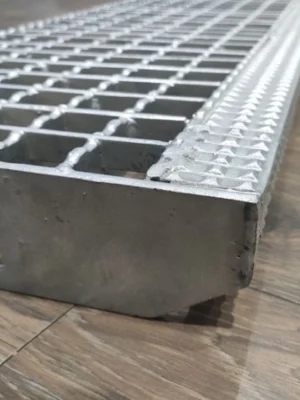

Strair Tread Grating
Stair tread steel grating is made of low carbon steel or stainless steel and is the most widely used type of steel gratings that have high strength, high bearing capacity, wear resistance, resistance to extreme temperature, wind, and rain, slip, corrosion, etc. Stair tread steel grating is widely used as different types of steel ladders in the factory units, schools, and colleges, parks, stadium, civil and commercial buildings.
Stair Treads Chequered plate flooring is being used in the Factories and plants or Roads, where the most chances of skidding are there. These Stair Tread grating Chequered Plate Flooring products supplied from the unit in Ajman, UAE are available with or without angle frames. We assemble products with the highest quality and are certain to have the right compound to meet your design specifications.
Our specialized team will work with you to bring you your customized project from concepts and design to production and final delivery. Our top priority is our customers’ satisfaction. The quality of the outputs to be delivered is always checked at each phase of the production process. Based in UAE, we provide our clients with a full service and quality-focused supply of precise custom-made products, making us stand out from the rest of the supplying companies.
Available Finishes: self-color/painted/hot-deep galvanized/aluminum and stainless steel.
Available thickness: 4mm, 5mm, 6mm, 8mm, 10 mm
Sizes: 1500 mm TO 12000 mm or as per your requirement.
Large tractioned or serrated surface stair treads are ideal for any wet and oily, liquidy surfaces, while surfaces with close-spacing designed treads are beneficial for pathways where a large number of passengers cross through.

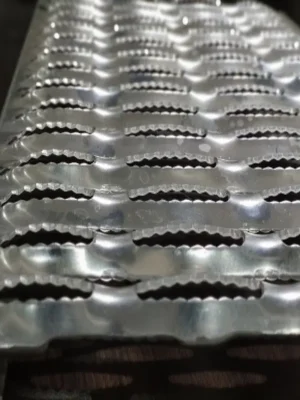

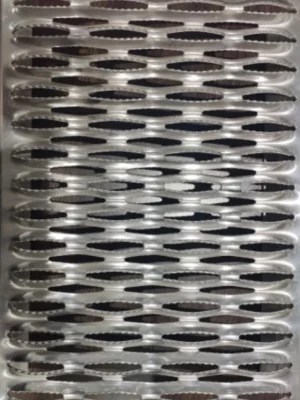

Plank and Diamond
Plank and diamond grating has different types including safety grating such as based on, Struts, Grip, and Traction. Diamond safety grating gives high-quality slip-resistant enforcement under several circumstances. It allows maximum resistance of slip in most industry/work’s risky environments where dampness, chemicals, and other substances pose a significant hazard. It gives maximum safety at oily, muddy, snow, greasy and wet surfaces.
They are also self-cleaning due to the hole patterns in it. It ensures the safety of your workers and visitors, giving you a stress-free mind knowing that you’re doing the best thing possible to protect them.Due to their great strength-to-weight performance, they ensure a high loading capacity and lasting life. It is commonly used for work floors and crossover platforms, for industrial flooring, for catwalk platforms, for balconies, for floors, for storage areas, for walkways, and stair treads. Power Greate supplies these in various sizes and shapes.
We source the best products at the best price to meet our customers’ demands. Safety Gratings is available in different materials such as Carbon/Galvanized Steel(which has a zinc coating on the surface to resist oxidation and corrosion), Aluminium Alloy, Steel, and Stainless steel and it also poses different hole patterns, sizes and shapes. Specified planks are available upon request by the customers.
Diamond-Grip Plank Surfaces Available:
- Standard Serrated Surface
- Non-Serrated Surface
- Relief hole available
Diamond Plank Safety Gratings Specifications
- Standard Lengths – 10’ & 12’
- Width : 4 3/4″ width, 7″ width, 9 1/2″ width, 11 3/4″ width, 18 3/4″ width and 24″ width.
- Relief hole available upon request on 3, 4, & 5 – diamond planks

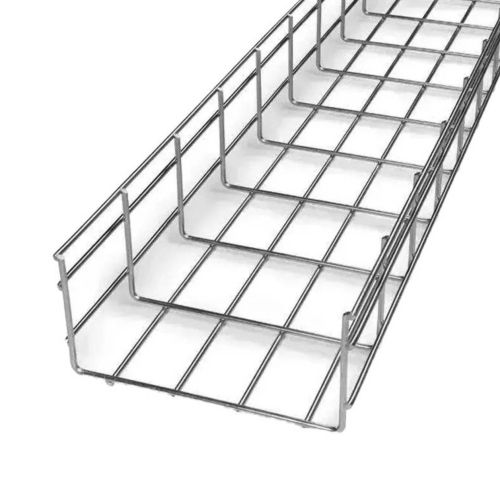

Authentic, high-quality, cost-effective, and innovative cable trays available. The cable trays are, a sustainable and safe way to support the need for electric power, control, signal, instrumentation, and communication cables. Since they are built in numerous techs, it provides the best versatility among other cable systems.As leader in cable tray suppliers, Power Greate Trading SPS LLC offers one of the widest ranges of cable management solutions. With exceptional quality and assistance, we offer variety of styles, materials, and finishes available. The different types of Cable Trays products we supply in UAE are as follows:
Pre-Galvanized Cable Trays (Fabricated from GI sheet)
Hot dip Galvanized Cable Trays (Hot dip Galvanized after fabricated from MS sheet)
Powder Coated Cable Trays (Powder coated after fabricated from MS sheet)
Aluminium Cable Trays (Fabricated from aluminium sheet)

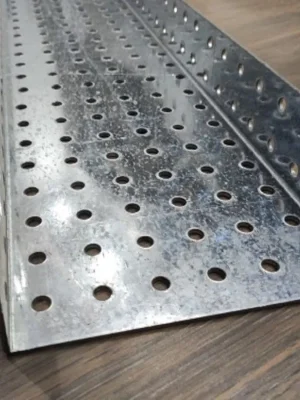

Perforated Cable Trays
- Standard Dimensions Length (mm) 2440 ,3000.
- Depth (mm) 50, 75, 100, 150, 300.
- Width (mm) 50, 75,100,150, 300, 450, 600,750, 900, 1200.
Ladder Cable Tray
- Standard Dimensions Radius R 300mm.
- Width (mm) 100, 150, 300 , 450 ,600, 750, 900.
- Length (mm) 900, 950, 1100, 1250, 1400, 1550, 1700.
- Breadth (mm) 500, 550, 100, 850, 1000, 1150, 1300.

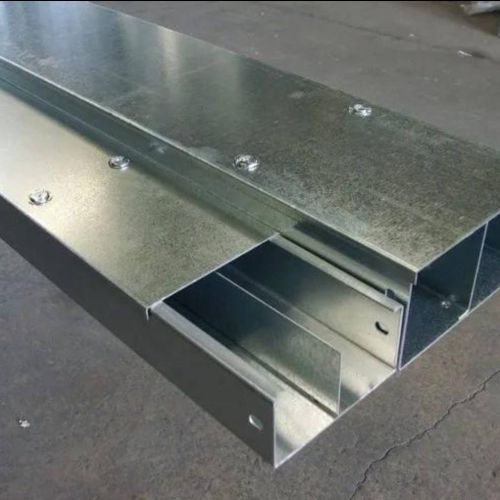

Trunking Type Cable Tray System
Standard Widths(mm)
50,75,100,150,200,300,450,600,750,900,1000,1200
| Standard Heights (mm)
50,75,100,150,200
|
Materials
AISI 304, 304L, 316, 316L, S275 JR, A36.
Finish
HDG, POWDER COATED, EPOXY PAINTING, ELECTO GALVANIZED

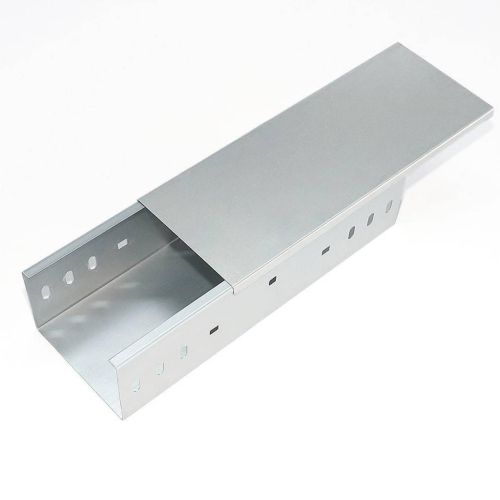

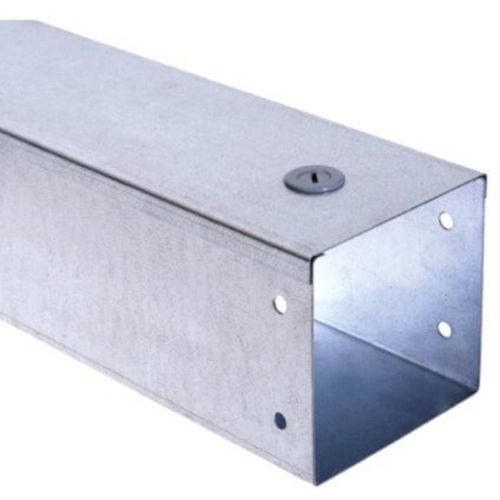

Cable Trunking is an integral part of any cable management system, without this essential component cables will be left exposed putting the professionals providing maintenance in the future and your customers at risk. As a leading supplier of single compartment trunking and twin compartment trunking, here at Power Greate SPS LLC Ajman, UAE , we certainly know a thing or two about the importance of cable protection and as we are the and suppliers of Cable Trunking products all over inside UAE and other Gulf Countries like Oman,Saudi Arabia,Qatar,Kuwait,Bahrain etc , Africa,Europe and thanks to a range of cable trunking systems available you can harness the advantages of a flexible and reliable support solution.
As well as providing single compartment trunking and twin compartment trunking, we also provide end stops, end caps, outlet flanges, stirrup hangers, spare trunking, speed locks, separators, overhead hook hangers, standoff brackets, internal flat 90 degree bends, 45 degree internal bends and 45 degree external bends. In addition to this, we also deliver trunking made specifically for lighting cables and three compartment cable trunking so more complex cable systems can be fully protected .
Features
- Power Greate’s CableTrunking products supplied in UAE is designed to provide a simple method of containing lightweight and structured cables. It is designed to meet all the requirements of BS 4678 & BS 50085 We offer a comprehensive range of standard Surface Trunking in single or multi-compartment.
- Both the trunking and the body are supplied in 3 meter lengths complete with coupler and all necessary fixing screws.
- Trunking System is designed to provide containment for light applications such as Structured Cables and LV Systems
- It fully complies with the requirement of BS 4678 / BS 50085.
Materials and Finishes
- Pre-Galvanized zinc coated steel JIS G3302 equivalent to BS EN 10142, (BS EN10142 supersedes BS2989), ASTM A653.
- Pre-Galvanized zinc coated steel JIS G3302 equivalent to BS EN 10142, (BS EN10142 supersedes BS2989), ASTM A653 with Epoxy Powder Coating with minimum film thickness 60 microns after fabrication.
- Hot dip galvanized with using Hot Rolled Steel to BS 10149-3:1996, Cold Rolled Steel to BSEN 10130:2006 then post galvanizing as per BS EN 1461 (Formerly BS729), ASTM-A 123.
- Stainless Steel Sheet to ASTM A240 type 304, 316L.
- Aluminum Grade AA 1100.

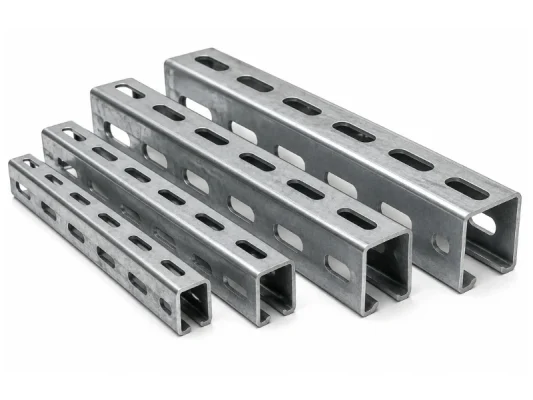

he slotted strut Channel support system is designed with many time-saving features. They are fully adjustable and reusable, with a complete line of channels, fittings, and accessories for multi-purpose applications.-No Welding (Single Channels)
-No DrillingThe strut system installs quickly, with no need for special tools. All you need is a wrench and hacksaw. Channels and parts can be taken apart for reuse as quickly as they were assembled, yet help provide the strength of welded construction. Elimination of welding and drilling results in substantial savings in time and labor. Channels for framing and mounting are typically made from steel sheets, bent, and cut into an open box shape with inward-facing lips and varying hole patterns.
Power Greate SPS LLC based in Ajman UAE and Suppliers of Slotted Strut Channels all over UAE and Exporters of Slotted Channels in Oman, Saudi Arabia, Kuwait, Qatar, Bahrain, and also to Africa and Europe.
Based in UAE, we provide our clients with a full service and quality-focused supply of precise custom-made products, making us stand out from the rest of the supplying companies. Our top priority is our customers’ satisfaction. The quality of the outputs to be delivered is always checked at each phase of the production process. We ensure that no product leaves our industry without having verified the aptness and confirmed that each specification has been met.
Slotted channel available
Standard Channel lengths are 3 meters or 6 meters. Also available lengths as per customer’s demand.
Material Available
Strut Channels are
- Cold rolled from 1.5mm to 2.5mm Steel strips
- Mild Steel
- Pre-Galvanized Steel
- Stainless Steel Grade 316.
Sizes Available
- 41.3 x 41.3mm
- 41.3 x 21.6mm
- 41.3 x 61.9mm
Finish Available
- Self Finish (Black)
- Bright Zinc Plated
- Pre-Galvanized & Hot Dip Galvanized.

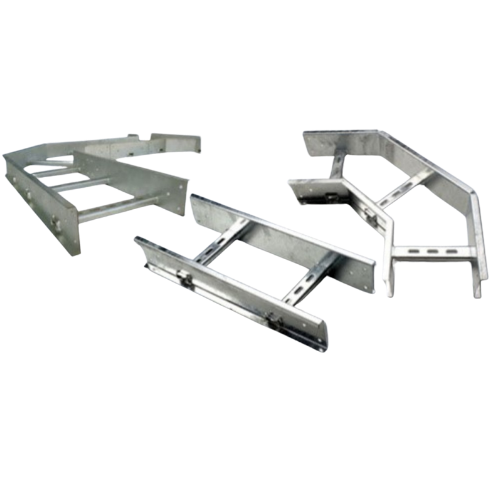

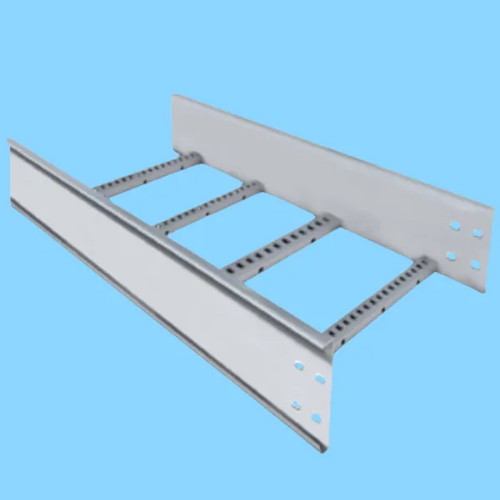

Power Greate offers and supply cable ladders in Dubai, Sharjah, Ajman, Abu Dhabi, Ras Al Khaimah, Fujeirah and Northern Regions of Abu Dhabi such as Ruwais and other regions. We also supply and exporter of Cable Ladders products in different countries such as Oman, Kuwait, Saudi Arabia, Bahrain, Africa, Europe and around the world. Supply of Cable Ladders from UAE with the following various finishes are available:
- Powder coated Cable Ladders
- Epoxy painted Cable ladders
- Stainless steel Cable Ladders
- Aluminium Cable Ladders
Power Greate suppliers of different types of cable ladders in UAE. The available Cable Ladder products we supply in UAE and other countries are
- C Type Cable Ladder
- R Type Cable Ladder
- P Type Cable Ladder
Materials and Finishes
Hot-dip galvanized with using Hot Rolled Steel to BS 10149-3: 1996, Cold Rolled Steel to BSEN 10130:2006 then post galvanizing as per BS EN 1461 (Formerly BS729) ASTM-A123. – Hot dip galvanized with using Hot Rolled Steel to BS 10149-3:1996, Cold Rolled Steel to BS EN10130:2006 then post galvanizing as per BSEN 1461 (Formerly BS 729) ASTM A123 with Epoxy Powder Coated or 3 . – Stainless Steel Sheet to ASTM A240 type 304, 316L. – Aluminum Grade AA1100.
Coat Wet Paint System
Standard Widths: 100, 150, 225, 300, 450, 600, 750, 900, 1000-mm width.
Other widths are also available on request.

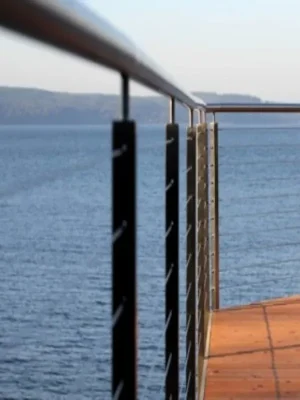

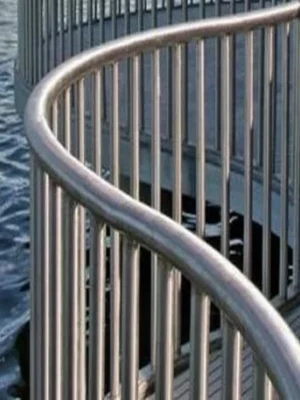

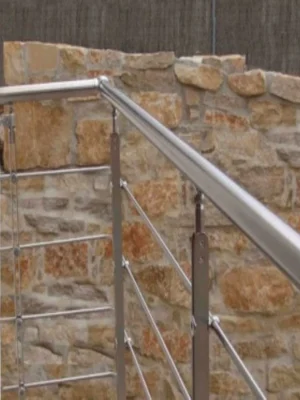

Nothing quite compares to the stylish look of brushed steel handrail, and it’s perfect for both inside and outdoors, at home, or on business premises. Our steel tube, rod, and wire handrail solutions are extremely versatile, and offer a wide range of price options, from the extremely affordable wire rope infill solutions to steel and glass solutions which offer rigidity, durability, and style.

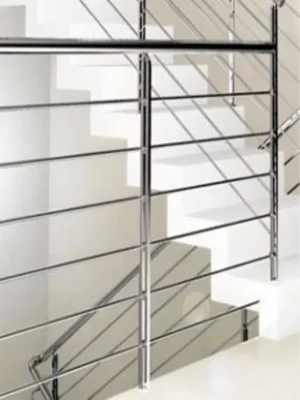

Stainless Steel Handrail Fabrication
Power Greate offers high-end structural metal and steel balustrade fabrication services. Our balustrade supplies compliments modern designs, superior quality, prompt arrangement, and installation, and excellent safety. Discover our broad range of glass balustrades, baluster railings, handrails, as well as our many other innovative solutions for high-quality handrails.
Power Greate is the leading supplier of stainless steel Railings in UAE such as stainless steel Modern Railing, stainless steel Hand Railings and stainless steel Capsule Railings, stainless steel staircase railing, stainless steel spiral railing, stainless steel glass railing, stainless steel pipe railing, and stainless steel balcony railings, stainless steel steps railings, s-grip railings, and stainless steel round pipe railings, etc.
The Manufacturing and Fabrication unit based in Ajman UAE manufactures and works on all types of Stainless Steel Handrail fabrication on different types of materials and for different purposes as per the custom requirement of the clients.
Based in UAE, we provide our clients with a full service and quality-focused supply of precise custom-made products, making us stand out from the rest of the supplying companies. Our top priority is our customers’ satisfaction. The quality of the outputs to be delivered is always checked at each phase of the production process. We ensure that no product leaves our industry without having verified the aptness and confirmed that each specification has been met.
