GRP/FRP PRODUCTS
Power Greate Trading SPS LLC. is the leading supplier of various GRP / FRP Gratings. FRP / GRP Grating Structural profiles are manufactured using a pultrusion process (polymerization of a profile pulled through a heated die) and contain up to 70% fiberglass, ensuring exceptional mechanical strength. Their structure, composed of continuous directional glass fibers, gives them excellent resistance to impact and fatigue (overloading does not cause permanent deformations). FRP (Fiber Reinforced Plastic) pultruded profiles have various advantages: extraordinary rigidity, corrosion resistance, electrical insulation, and are lightweight. Designed by specialists in composite structures, pultruded profiles take into account all the properties required in a load-bearing profile or beam, such as longitudinal strength, shear resistance, flange flexural resistance, and transversal strength. Applications for pultruded profiles and self-supporting structures, pultruded fiberglass profiles are designed to be used as structural supports with all the necessary performance guarantees.

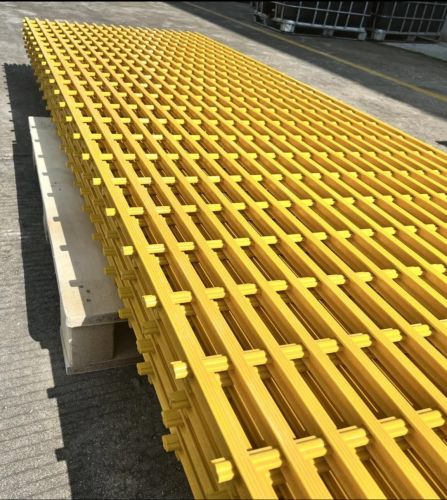

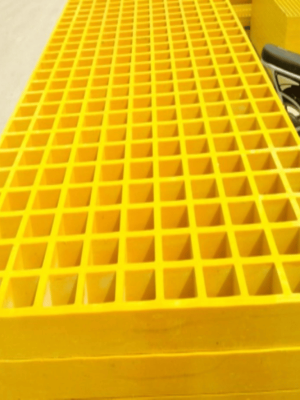

Molded / Pultruded Grating
Power Greate Trading SPS LLC. is the leading supplier of various GRP / FRP Gratings. FRP / GRP Grating Structural profiles are manufactured using a pultrusion process (polymerization of a profile pulled through a heated die) and contain up to 70% fiberglass, ensuring exceptional mechanical strength. Their structure, composed of continuous directional glass fibers, gives them excellent resistance to impact and fatigue (overloading does not cause permanent deformations). FRP (Fiber Reinforced Plastic) pultruded profiles have various advantages: extraordinary rigidity, corrosion resistance, electrical insulation, and are lightweight. Designed by specialists in composite structures, pultruded profiles take into account all the properties required in a load-bearing profile or beam, such as longitudinal strength, shear resistance, flange flexural resistance, and transversal strength. Applications for pultruded profiles and self-supporting structures, pultruded fiberglass profiles are designed to be used as structural supports with all the necessary performance guarantees.

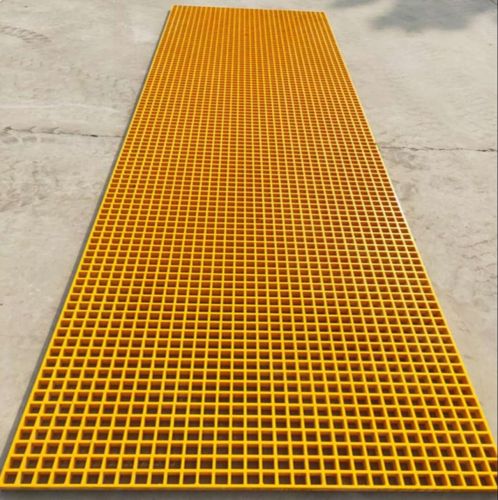

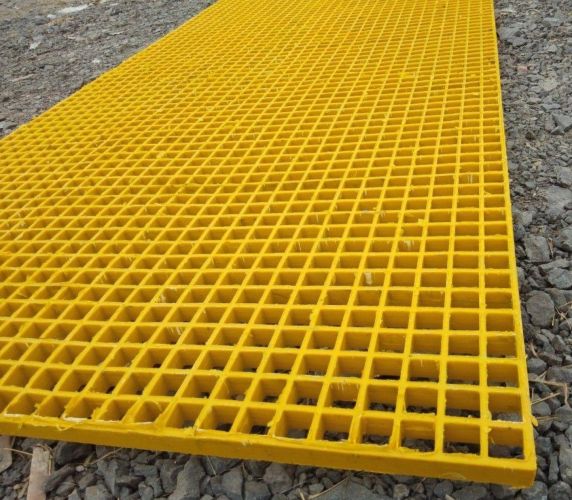

Mini Mesh Grating
FRP Mini-mesh Grating is a special FRP Molded Grating, with a cross bar at the top of the grating. The cross bar forms a smaller hole size at the top of the grating, which could protect small sized items from dropping through the holes.
It has been widely used in areas such as: industrial , commercial , recreational such as:walkway, operation platform, drilling platforms, stair treads, equipment walkways, trench cover, pedestrian over bridge, ship deck, scaffolding floor, ventilation gate, fence,etc.
Advantages of FRP Mini Mesh Grating
- High anti-fire
- High anti-corrosion and anti-aging
- High anti-slippery
- Light,but high loaded strength
- Long service life and maintenance free
- Non-conduction or magnetic
- Easy installation and rich colors
- Various sizes and colors available

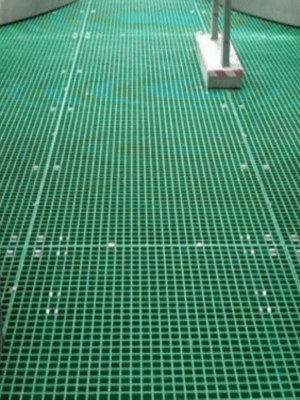

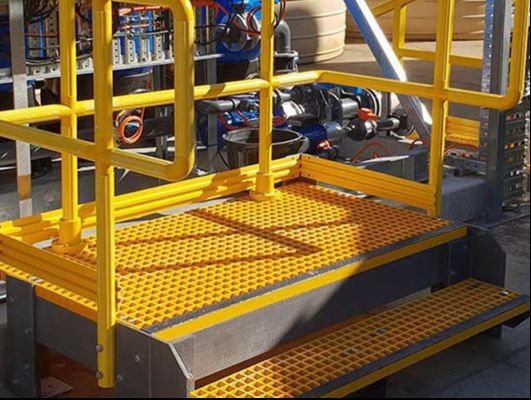

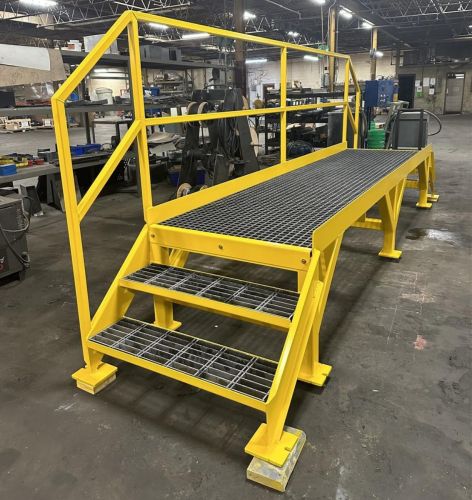

Grating Platform
Golden Fiberglass is light weight, height strength, Non-Conductive, Corrosion Resistant, Slip Resistant and No Welding required. Widely used by:
- Chemical Plants
- Having excellent resistant to corrosion, FRP grating is extensively used in Chemical Plants. It is mainly used operation platform, walkways, oil storage tanks, power distribution boards and rooms, etc.
- Manufacture
- FRP grating can be used as Walkways,Fencing,Racks and shelving,Wash racks,Scaffolding,Drainage pit covers Stairs,etc.
- Water and Sewage Water
- FRP grating are environmentally safe and can be used extensively as filter media support,access walkways,trench Scaffolding,manhole cover,walkovers Scaffolding and Fencing,Stairs,etc.
- Transportation
- FRP grating can be used as access ways,Platforms(static resistant),docks,trenches,tanker,Stairs,Freight car flooring fill areas as well as walking surfaces and in work areas,etc.

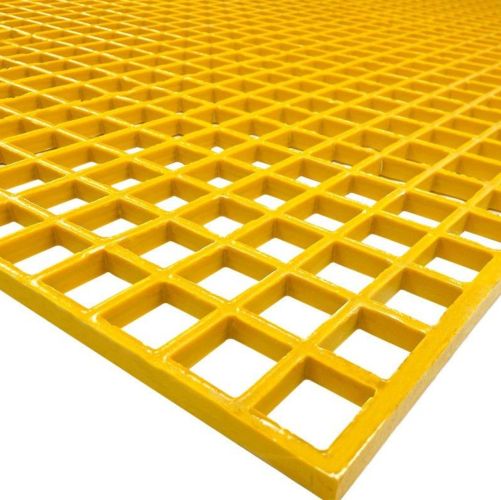

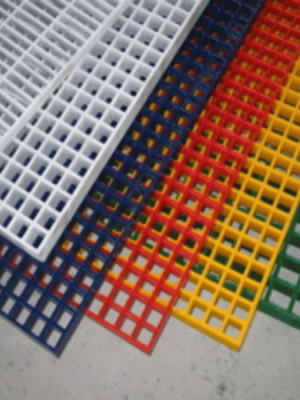

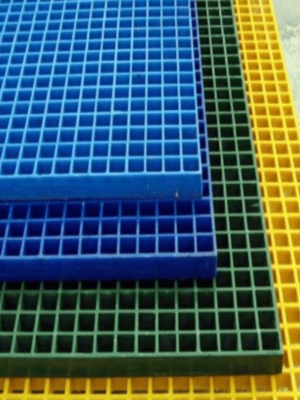

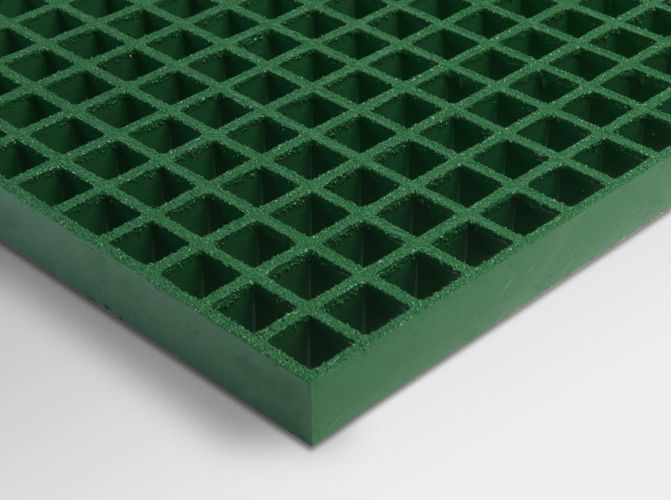

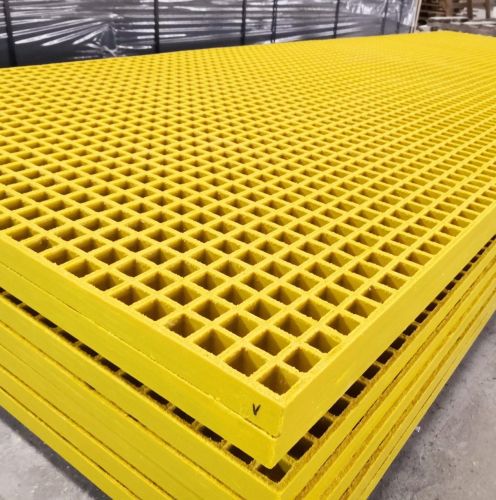

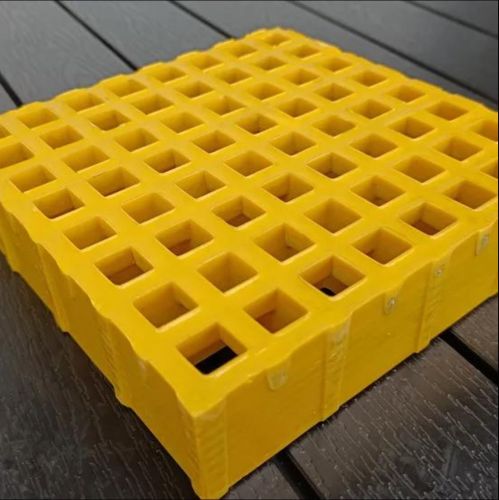

Molded Grating
- Corrosion Resistance
- Different types of resin provide their own different anti-corrosion properties, which could be used in different corrosion circumstance such as acid, alkali, salt, organic solvent (in gas or liquid form) and the like over a long period.
- Fire Resistance
- Our special formula provide grating with excellent fire resistant performance. Our FRP gratings pass ASTM E-84 Class 1.
- Light Weight & High Strength
- The perfect combination of the continuous E-glass roving and thermosetting polyester resin provide grating with light weight and high strength and its specific gravity is only 1/4 of that of steel, 1/3 of aluminum. Its rigidity is up to and even exceeds
- Safety & Anti-slip
- The high modulus of elasticity and various surfaces provided the super anti-skid performances. Its surface could be smooth surface, meniscus surface, grit surface and chequer plate cover which is suitable for different working places.
- Aging Resistance
- The high-grade resin and anti-ageing stabilizer provide grating long-life ageing resistant performance and the unique design make grating excellent self-cleanness function and keep its brightness and strength over a long time. The service life of grating could be 25 years
- Electrical Insulating
- High strength E-glass roving and high-grade resin provide the product super electric performance. Its electric break strength could reach 10KV/mm. There is no electric spark even when impact by tools, meanwhile it is non-magnetism. FRP Molded Grating could be used safely under the antiknock, diamagnetism and electric-resistance environments.

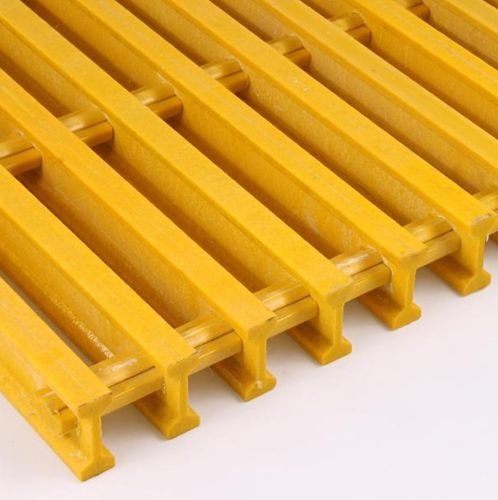

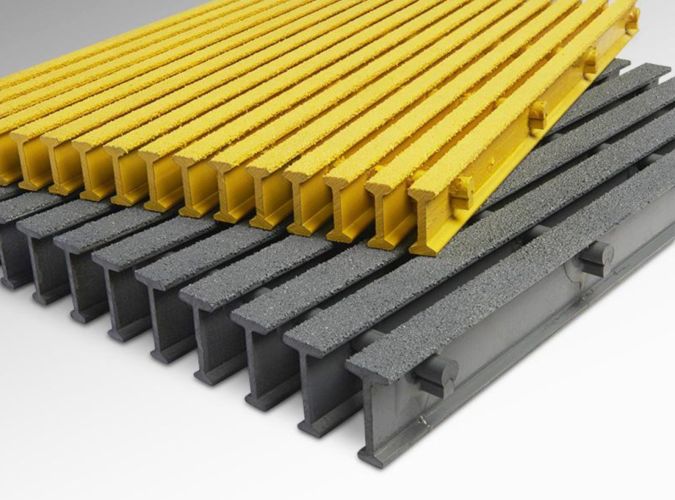

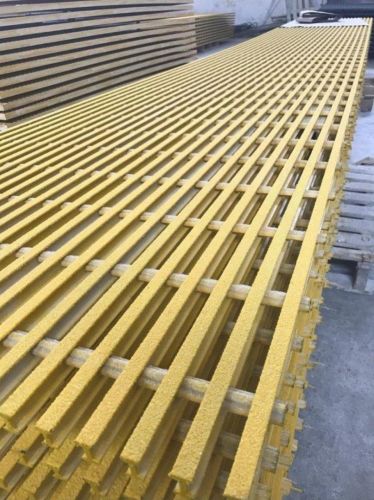

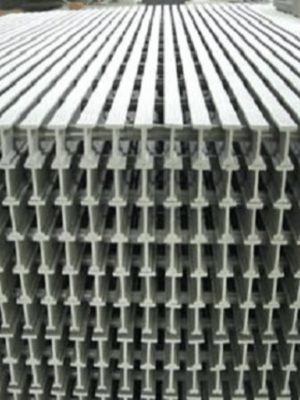

Pultruded Grating
The 65% glass to 35% resin ratio of pultruded grating provides twice the stiffness of molded grating, allowing it to span greater distances. Pultruded grating is best suited to pedestrian walkways, platforms, and other applications where wide support spans, close load bar spacing, or ADA compliance is required. Safe-T-Span pultruded gratings are offered in a variety of panel sizes, depths, tie bar spacing and open area.Features:Corrosion Resistant
- Slip Resistant
- Fire Retardant
- High Strength-to-Weight Ratio
- Non-Conductive
- Low Installation Cost
- Long Service Life
- Superior Ergonomics

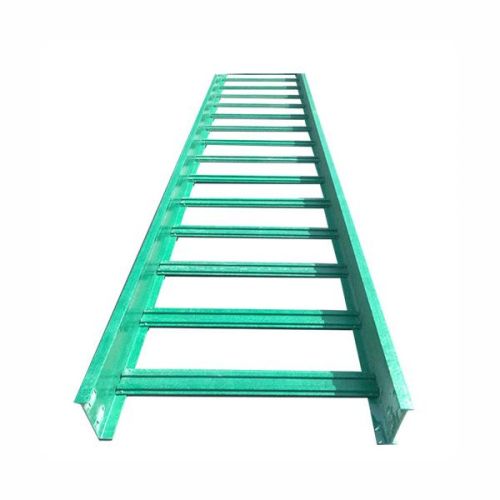

GRP/FRP Cable Tray perfectly crafted and manufactured from selective premium glass fibers reinforced to form a strong composition that is resistant to various chemicals, retards fire, and protection from UV rays. Our FRP GRP Cable Tray is widely used in Electrical & Instrumental Installations. We exhibit a wide range of FRP (Fiber-Reinforced Plastics) and GRP (Glass-Reinforced Plastics) Cable trays, FRP/GRP Perforated trays, and FRP/GRP Supports to provide complete solutions for cable system projects.Fiberglass reinforced plastics cable trays systems include ventilated and solid bottom cable trays, FRP/GRP tray Covers, bends, fittings, and accessories. Our Cable Trays are always manufactured supplied in line with the industry regulations and standards.
Power Greate GRP/FRP Cable trays accessories to meet the exact site necessity. They include FRP covers, Vertical Inside and outside Bend, Horizontal bend, Unequal tee, Tee, GRP/FRP Cross, FRP/GRP Reducer, FRP/GRP Vertical hinge, FRP/GRP Horizontal hinge, FRP/GRP Splice and Coupler plates, FRP/GRP cover clamps, and many others. The GRP/FRP Cable trays fittings are assembled using stainless steel bars. Pre-assembled fittings are also available on all tray types.
Advantages Of FRP GRP Cable Trays & Accessories
- Corrosion Resistant
- Retards fire
- Long endurance
- Maintenance-free
- Easy Installation
- High Strength
- High sustainability

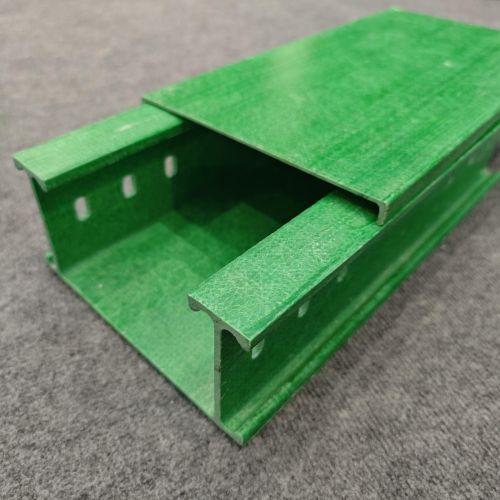

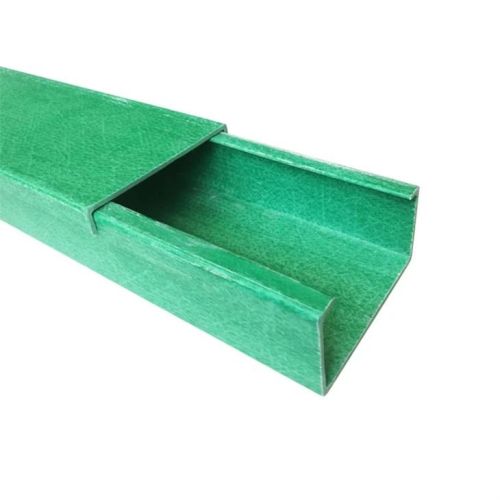

GRP/FRP Trunking is a high-performance cable management system manufactured from glass fiber reinforced polymer using premium-grade resin systems. It is designed to provide reliable protection and organization of power, control, instrumentation, and communication cables in demanding environments. The trunking offers exceptional corrosion resistance, electrical insulation, UV stability, and low maintenance, making it an ideal alternative to conventional steel trunking. Available in a variety of sizes with a complete range of fittings and accessories, GRP/FRP trunking is widely used in industrial, marine, offshore, utility, and infrastructure applications where durability and long service life are essential.Standard Construction
Typical trunking consists of:
- Pultruded or molded GRP body
- Removable snap-fit or bolted cover
- Smooth internal cable surface
- Reinforced side walls
- UV-resistant finish
- Fire-retardant resin (optional)
Product Overview
GRP/FRP trunking systems consist of straight sections, removable covers, and a range of fittings that allow easy cable routing and protection.
Typical components include:
- Straight trunking sections
- Removable covers
- Flat bends
- Vertical inside bends
- Vertical outside bends
- Horizontal elbows
- Tee pieces
- Cross junctions
- Reducers
- End caps
- Couplers
- Cover fixing clamps
- Mounting brackets
Key Features and Benefits
| Feature | Benefit |
| Corrosion Resistant | Suitable for chemical, coastal, and humid environments |
| Lightweight | Easy handling and reduced installation time |
| High Mechanical Strength | Protects cables from impact and external loads |
| Electrically Non-Conductive | Improves personnel and equipment safety |
| Non-Magnetic | Suitable for sensitive electrical installations |
| UV Resistant | Ideal for outdoor applications |
| Fire Retardant | Available with flame-retardant resin systems |
| Low Maintenance | No painting or anti-corrosion treatment required |
| Easy Installation | Compatible with standard supports and accessories |
| Long Service Life | Designed for reliable performance over decades |
GRP/FRP Trunking is a high-performance cable management system manufactured from glass fiber reinforced polymer using premium-grade resin systems. It is designed to provide reliable protection and organization of power, control, instrumentation, and communication cables in demanding environments. The trunking offers exceptional corrosion resistance, electrical insulation, UV stability, and low maintenance, making it an ideal alternative to conventional steel trunking. Available in a variety of sizes with a complete range of fittings and accessories, GRP/FRP trunking is widely used in industrial, marine, offshore, utility, and infrastructure applications where durability and long service life are essential.Standard Construction
Typical trunking consists of:
- Pultruded or molded GRP body
- Removable snap-fit or bolted cover
- Smooth internal cable surface
- Reinforced side walls
- UV-resistant finish
- Fire-retardant resin (optional)
Product Overview
GRP/FRP trunking systems consist of straight sections, removable covers, and a range of fittings that allow easy cable routing and protection.
Typical components include:
- Straight trunking sections
- Removable covers
- Flat bends
- Vertical inside bends
- Vertical outside bends
- Horizontal elbows
- Tee pieces
- Cross junctions
- Reducers
- End caps
- Couplers
- Cover fixing clamps
- Mounting brackets
Key Features and Benefits
| Feature | Benefit |
| Corrosion Resistant | Suitable for chemical, coastal, and humid environments |
| Lightweight | Easy handling and reduced installation time |
| High Mechanical Strength | Protects cables from impact and external loads |
| Electrically Non-Conductive | Improves personnel and equipment safety |
| Non-Magnetic | Suitable for sensitive electrical installations |
| UV Resistant | Ideal for outdoor applications |
| Fire Retardant | Available with flame-retardant resin systems |
| Low Maintenance | No painting or anti-corrosion treatment required |
| Easy Installation | Compatible with standard supports and accessories |
| Long Service Life | Designed for reliable performance over decades |

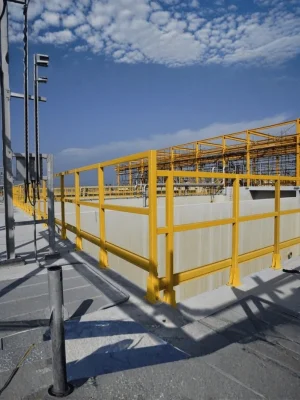

GRP/FRP Structural Profiles are pultruded composite structural members manufactured from continuous glass fibers and premium-grade resin systems. Designed for high-strength, lightweight construction, these profiles provide excellent corrosion resistance, electrical insulation, UV stability, and long service life. They are ideal for industrial platforms, cable support systems, walkways, handrails, chemical plants, marine structures, water treatment facilities, and other demanding environments where conventional steel structures are susceptible to corrosion. Available in standard and custom profiles including I-beams, channels, angles, tubes, flats, and T-sections to meet various structural requirements.
These profiles are widely used as an alternative to steel, aluminum, and timber in corrosive, marine, chemical, electrical, and industrial environments.
Product Overview
GRP/FRP structural profiles are available in a wide range of standard shapes, including:
- I-Beams
- H-Beams
- Channels (C-Channel)
- Equal & Unequal Angles
- Square Tubes
- Rectangular Tubes
- Round Tubes
- Solid Rods
- Flat Bars
- T-Sections
- Z-Sections
- Custom Pultruded Profiles
GRP/FRP structural profiles are commonly used in:
- Cable tray support structures
- Walkways and access platforms
- Stairways and handrail systems
- Cooling towers
- Chemical processing plants
- Water & wastewater treatment facilities
- Offshore oil & gas platforms
- Marine jetties and docks
- Electrical substations
- Industrial buildings
- Solar mounting structures
Key Features and Benefits
| Feature | Benefit |
| Lightweight | Up to 75% lighter than steel, reducing installation costs |
| High Strength | Excellent strength-to-weight ratio |
| Corrosion Resistant | Ideal for chemical, coastal, and humid environments |
| Non-Conductive | Electrically non-conductive, improving safety |
| Non-Magnetic | Suitable for sensitive electrical and electronic installations |
| Fire Retardant | Available with fire-retardant resin systems |
| UV Resistant | Suitable for outdoor exposure with UV inhibitors |
| Low Maintenance | No painting, galvanizing, or regular corrosion protection required |
| Long Service Life | Typically 25–50+ years in harsh environments |
| Easy Fabrication | Can be cut, drilled, and assembled using standard tools |
Standard Sizes
Common profile dimensions include:
- I-Beams: 100–300 mm depth
- Channels: 50–300 mm
- Angles: 25×25 mm to 150×150 mm
- Square Tubes: 25×25 mm to 200×200 mm
- Rectangular Tubes: Various sizes
- Standard Lengths: 3 m, 6 m, or custom lengths
Typical Technical Specifications
Material: Pultruded Glass Reinforced Plastic (GRP/FRP)
Manufacturing Process: Pultrusion
Resin Type: Polyester / Vinyl Ester
Glass Content: Approximately 60–70%
Operating Temperature: -40°C to +100°C (depending on resin)
Fire Rating: Available with fire-retardant resin
UV Resistance: Yes
Corrosion Resistance: Excellent
Density: Approximately 1.8–2.0 g/cm³
GRP/FRP Roofing Sheets are high-performance composite roofing panels manufactured from glass fiber reinforced polymer using premium-grade resin systems. Engineered for strength, durability, and long-term weather resistance, these roofing sheets provide excellent protection against corrosion, UV exposure, moisture, and chemical attack. Available in corrugated, trapezoidal, opaque, and translucent profiles, they are ideal for industrial, commercial, agricultural, and infrastructure applications. GRP/FRP roofing sheets offer lightweight construction, high impact resistance, low maintenance requirements, and a long service life, making them an economical and reliable alternative to conventional metal roofing systems.
Product Overview:
RP/FRP roofing sheets are manufactured in various profiles to match standard metal roofing systems and can be supplied in different thicknesses, colors, and resin formulations.
Common product types include:
- Corrugated Roofing Sheets
- Trapezoidal Roofing Sheets
- Translucent Daylighting Panels
- Opaque Roofing Sheets
- UV-Resistant Roofing Panels
- Fire-Retardant Roofing Sheets
- Chemical-Resistant Roofing Panels
- Insulated Composite Roofing Panels
- Custom Profile Roofing Sheets
Key Benefits
| Feature | Benefit |
| Lightweight | Easy transportation and quick installation |
| Corrosion Resistant | Ideal for coastal, humid, and chemical environments |
| UV Resistant | Excellent weathering performance and color stability |
| High Impact Strength | Resistant to hail, wind, and accidental impacts |
| Excellent Weather Resistance | Performs well in extreme climates |
| Translucent Options | Allows natural daylight, reducing lighting costs |
| Fire-Retardant | Available with flame-retardant resin systems |
| Low Maintenance | No rust, peeling, or repainting required |
| Long Service Life | Designed for decades of reliable performance |
| Easy Installation | Compatible with standard roofing support systems |

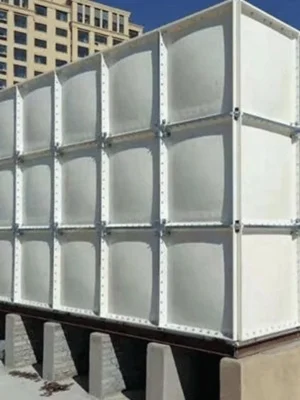

GRP/FRP Storage Tanks are high-performance composite tanks manufactured from glass fiber reinforced polymer using advanced resin systems to provide superior corrosion resistance, high mechanical strength, and long service life. Designed for the safe storage of potable water, wastewater, chemicals, and industrial process liquids, these tanks are available in vertical, horizontal, underground, and custom configurations. Their lightweight construction, UV resistance, leak-resistant design, and low maintenance requirements make them an ideal alternative to steel and concrete tanks in demanding industrial, commercial, and municipal applications. Available with a full range of accessories and custom capacities, GRP/FRP storage tanks provide a reliable and cost-effective storage solution for a wide variety of industries.Compared with conventional steel or concrete tanks, GRP/FRP storage tanks provide outstanding durability in aggressive environments while requiring minimal maintenance.
| Property | Typical Performance |
| Density | 1.7–2.0 g/cm³ |
| Operating Temperature | -40°C to +100°C (depending on resin) |
| Corrosion Resistance | Excellent |
| UV Resistance | Excellent |
| Water Absorption | Very Low |
| Chemical Resistance | Excellent |
| Electrical Conductivity | Non-conductive |
| Fire Performance | Available with fire-retardant resin systems |
Product Overview
GRP/FRP storage tanks are available in a wide range of configurations and capacities to suit industrial, municipal, and commercial applications.
Typical tank configurations include:
- Vertical Storage Tanks
- Horizontal Storage Tanks
- Cylindrical Tanks
- Rectangular Panel Tanks
- Underground Storage Tanks
- Chemical Storage Tanks
- Potable Water Storage Tanks
- Process Tanks
- Mixing Tanks
- Septic Tanks
- Customized FRP Tanks
Optional accessories include:
- Access manholes
- Internal and external ladders
- Level indicators
- Nozzles and flanges
- Overflow connections
- Drain outlets
- Vent pipes
- Support saddles or steel bases
- Agitator mounting arrangements
| Feature | Benefit |
| Excellent Corrosion Resistance | Suitable for aggressive chemicals and marine environments |
| Lightweight Construction | Easier transportation and installation than steel or concrete tanks |
| High Mechanical Strength | Designed for reliable structural performance |
| Leak-Free Construction | Manufactured with seamless or bonded composite construction |
| Chemical Resistant | Compatible with a wide range of acids, alkalis, and industrial chemicals |
| UV Resistant | Suitable for long-term outdoor installation |
| Hygienic | Suitable for potable water applications with appropriate resin systems |
| Low Maintenance | No painting or anti-corrosion treatment required |
| Long Service Life | Typically exceeds 25 years under proper operating conditions |
| Customizable | Manufactured in various sizes, shapes, and capacities |
Standard Specifications
Typical capacities:
- 500 Litres
- 1,000 Litres
- 2,000 Litres
- 5,000 Litres
- 10,000 Litres
- 25,000 Litres
- 50,000 Litres
- 100,000 Litres
- Larger custom-built tanks available
Tank orientations:
- Vertical
- Horizontal
- Underground
- Rectangular sectional tanks
Manufacturing methods:
- Filament Winding
- Hand Lay-Up
- Spray-Up
- Compression Molding (selected components)

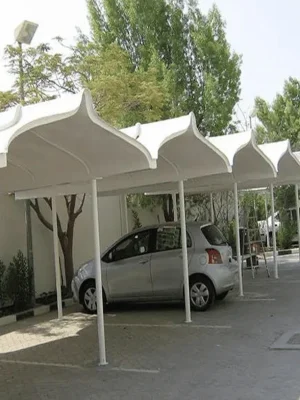

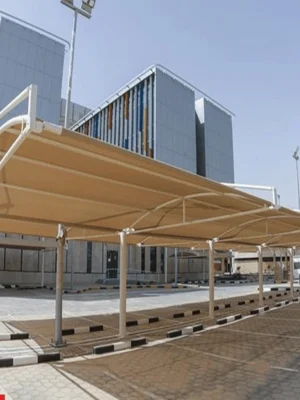

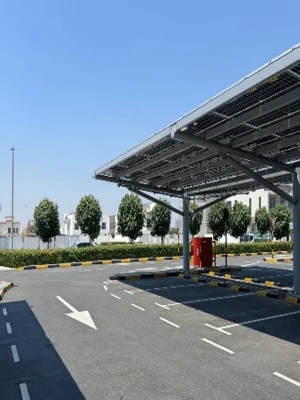

RP/FRP Car Parking Sheds are high-performance canopy systems manufactured from pultruded glass fiber reinforced polymer structural profiles and durable GRP/FRP roofing sheets. Designed to provide reliable protection against sunlight, rain, and harsh environmental conditions, these structures combine lightweight construction with exceptional corrosion resistance, UV stability, and long service life. Ideal for residential, commercial, industrial, and coastal installations, GRP/FRP parking sheds require minimal maintenance and are available in single-bay, multi-bay, cantilever, and custom configurations. Optional features such as translucent roofing panels, integrated lighting supports, rainwater gutters, and solar panel mounting systems can be incorporated to meet specific project requirements.
Material Composition
Structural Members: Pultruded Glass Reinforced Plastic (GRP/FRP)
Roofing Panels: GRP/FRP Corrugated or Flat Sheets
Reinforcement: Continuous E-Glass Fiber
Resin Systems:
-Polyester
-Vinyl Ester
-Epoxy (for specialized applications)
Surface Finish: UV-Stabilized Gel Coat
Fasteners: Stainless Steel or Hot-Dip Galvanized Steel
Product Overview:
GRP/FRP parking sheds are engineered using pultruded structural profiles and composite roofing panels to deliver a long-lasting and aesthetically appealing solution for residential, commercial, and industrial parking areas.Typical system components include:
- GRP/FRP Structural Columns
- GRP/FRP Beams and Rafters
- GRP/FRP Roofing Sheets (Opaque or Translucent)
- Connection Plates and Fasteners
- Foundation Base Plates
- Rainwater Gutter System (Optional)
- Integrated Lighting Supports (Optional)
- Solar Panel Mounting Provision (Optional)
Available configurations:
- Single Vehicle Parking Shed
- Double Vehicle Parking Shed
- Multi-Bay Parking Structures
- Cantilever Parking Canopies
- Free Standing Parking Sheds
- Modular Parking Systems
- Solar Car Parking Canopies
- Standard Specifications
Typical width: 2.5 m – 6.0 m
Typical projection: 5 m – 7 m
Typical height: 2.5 m – 4.0 m
Roof options:
- Opaque GRP/FRP Sheets
- Translucent Daylighting Sheets
- UV-Protected Roofing Panels
Structural system:
- Pultruded GRP/FRP Profiles
- Bolted Mechanical Connections
- Hot-Dip Galvanized or Stainless Steel Fasteners
Finish:
-Smooth Gel Coat
-UV-Resistant Surface
-Custom Colors Available
GRP/FRP Boxes are high-performance protective enclosures manufactured from premium-grade glass fiber reinforced polymer using advanced resin systems. Designed to safeguard electrical, instrumentation, communication, and control equipment, these enclosures provide outstanding corrosion resistance, electrical insulation, weather protection, UV stability, and long service life. Available in a wide range of standard and custom sizes, GRP/FRP boxes can be supplied with hinged or lockable doors, mounting plates, DIN rails, cable glands, and other accessories to suit specific application requirements. Their lightweight construction, low maintenance, and excellent durability make them an ideal choice for industrial, marine, utility, and commercial installations where reliable equipment protection is essential.
Material Composition
- Enclosure Material:
- Glass Reinforced Plastic (GRP/FRP)
- Reinforcement:
- Continuous E-Glass Fiber
- Resin Systems:
- Polyester
- Vinyl Ester
- Epoxy (special applications)
- Gasket Material:
- EPDM
- Silicone
- Neoprene
- Hardware:
- Stainless Steel (AISI 304 / AISI 316)
Product Overview
GRP/FRP boxes are available in a variety of sizes, configurations, and mounting options to accommodate different applications.
Typical product types include:
- Electrical Enclosure Boxes
- Utility Boxes
- Instrumentation Boxes
- Control Panel Enclosures
- Distribution Boxes
- Meter Boxes
- Battery Boxes
- Communication Equipment Boxes
- Outdoor Weatherproof Boxes
- Custom Fabricated GRP/FRP Boxes
Optional accessories include:
- DIN Rails
- Mounting Plates
- Cable Glands
- Terminal Blocks
- Stainless Steel Hinges
- Lockable Latches
- Transparent Inspection Windows
- Ventilation Louvers
- Internal Shelves
- Pole Mounting Kits
Standard Specification
Typical sizes:
- 200 × 200 × 150 mm
- 300 × 300 × 200 mm
- 400 × 300 × 200 mm
- 500 × 400 × 250 mm
- 600 × 400 × 300 mm
- 800 × 600 × 300 mm
- Custom dimensions available
Mounting options:
- Wall Mounted
- Pole Mounted
- Floor Mounted
- Free Standing
Door options:
- Single Door
- Double Door
- Hinged Door
- Lockable Door
- Transparent Viewing Window
Ingress Protection:
- IP55
- IP65
- IP66
- IP67 (depending on design and sealing system)
Technical Characteristics
| Property | Typical Performance |
| Density | 1.8–2.0 g/cm³ |
| Operating Temperature | -40°C to +100°C (depending on resin) |
| Corrosion Resistance | Excellent |
| UV Resistance | Excellent |
| Electrical Conductivity | Non-conductive |
| Water Resistance | Excellent |
| Chemical Resistance | Excellent |
| Fire Performance | Available with flame-retardant formulations |
| Ingress Protection | Up to IP67 (model dependent) |
Advantages over Metal Enclosures
| GRP/FRP Box | Metal Box |
| Corrosion resistant | Can rust in harsh environments |
| Electrically insulating | Electrically conductive |
| Lightweight | Heavier |
| UV resistant | Requires protective coatings for outdoor use |
| Low maintenance | Needs periodic maintenance |
| Long service life | May have reduced lifespan in corrosive conditions |
| Excellent chemical resistance | Limited resistance to aggressive chemicals |

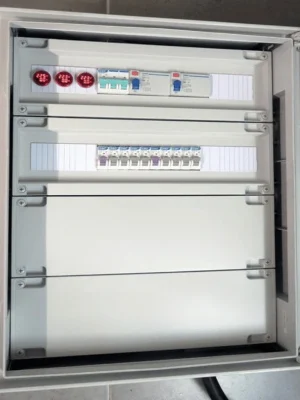

GRP/FRP Electrical Panels are high-performance electrical enclosures manufactured from premium-quality glass fiber reinforced polymer using advanced resin systems. Designed to house power distribution, control, automation, and instrumentation equipment, these panels provide exceptional corrosion resistance, electrical insulation, UV stability, weather protection, and long service life. Suitable for indoor and outdoor installations, GRP/FRP electrical panels are available in wall-mounted and floor-standing configurations with a wide range of sizes and ingress protection ratings. Their lightweight construction, low maintenance, and superior durability make them an ideal solution for industrial, marine, utility, and infrastructure applications where conventional steel panels may be affected by corrosion or harsh environmental conditions.
Product Overview
GRP/FRP Electrical Panels are available in standard and custom-built configurations to meet various electrical distribution and control requirements.
Typical Panel Types
- Main Distribution Panels (MDP)
- Sub Distribution Panels (SDP)
- Motor Control Center (MCC) Panels
- PLC Control Panels
- Instrumentation Panels
- Automation Panels
- Metering Panels
- Feeder Pillars
- Control Desks
- Outdoor Electrical Cabinets
- Junction & Marshalling Panels
- Custom Electrical Enclosures
Optional Accessories
- Galvanized or GRP mounting plates
- DIN rails
- Busbar supports
- Cable gland plates
- Stainless steel hinges and locks
- Viewing windows
- Internal lighting
- Cooling fans and filters
- Louvers and ventilation kits
- Rain canopies
- Earth terminals
- Cable management accessories
Standard Specifications
| Parameter | Typical Range |
| Material | GRP / FRP Composite |
| Resin Type | Polyester, Vinyl Ester, or Epoxy |
| Reinforcement | Continuous E-Glass Fiber |
| Ingress Protection | IP55, IP65, IP66, IP67 (depending on design) |
| Mounting | Wall Mounted / Floor Standing / Pole Mounted |
| Door Type | Single Door / Double Door |
| Surface Finish | Smooth UV-resistant Gel Coat |
| Color | Grey, Light Grey, Green, or Custom RAL Colors |
| Operating Temperature | -40°C to +100°C (depending on resin system) |
Technical Characteristics
| Property | Typical Performance |
| Density | 1.8–2.0 g/cm³ |
| Electrical Conductivity | Non-Conductive |
| Corrosion Resistance | Excellent |
| UV Resistance | Excellent |
| Water Resistance | Excellent |
| Chemical Resistance | Excellent |
| Impact Resistance | High |
| Fire Performance | Flame-retardant options available |

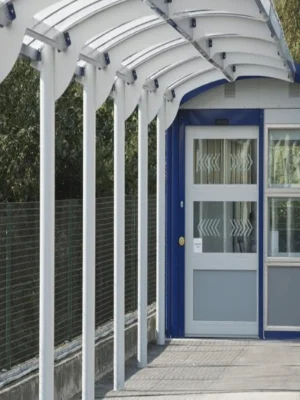

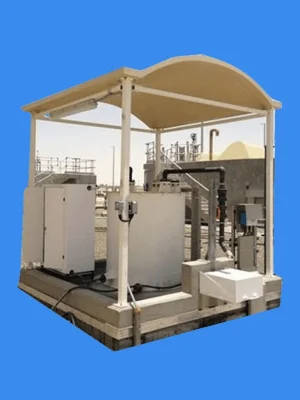

GRP/FRP Canopies are high-performance shelter structures manufactured from glass fiber reinforced polymer and engineered for long-lasting protection in demanding environments. Combining pultruded GRP structural profiles with durable roofing panels, these canopies provide excellent resistance to corrosion, UV exposure, moisture, and harsh weather conditions. Their lightweight construction, high structural strength, and low maintenance requirements make them an ideal solution for entrances, walkways, parking areas, industrial equipment, and public infrastructure. Available in standard and custom designs, GRP/FRP canopies can be tailored with various roofing options, colors, and accessories to meet project-specific functional and architectural requirements.
Product Overview
GRP/FRP canopies are fabricated using pultruded structural profiles, molded components, and durable GRP/FRP roofing sheets. Their modular construction allows easy installation and long-term performance in demanding environments.Available Configurations
- Entrance Canopies
- Walkway Canopies
- Building Entrance Shelters
- Industrial Equipment Canopies
- Car Parking Canopies
- Bus Stop Shelters
- Loading Bay Canopies
- Rooftop Access Canopies
- Outdoor Waiting Shelters
- Utility Equipment Covers
- Custom Fabricated Canopies
Optional Features
- Opaque or Translucent Roofing Panels
- UV-Resistant Gel Coat Finish
- Integrated Rainwater Gutters
- Decorative Side Panels
- LED Lighting Provision
- Stainless Steel Fasteners
- Wind Bracing
- Solar Panel Mounting Provision
- Custom Color Finishes
Standard Specifications
| Parameter | Typical Specification |
| Material | GRP / FRP Composite |
| Structural Members | Pultruded GRP Profiles |
| Roofing Material | GRP Corrugated or Flat Sheets |
| Resin Type | Polyester, Vinyl Ester, or Epoxy |
| Reinforcement | Continuous E-Glass Fiber |
| Surface Finish | UV-Resistant Gel Coat |
| Color | Grey, White, Green, Blue, or Custom RAL Colors |
| Fasteners | Stainless Steel (AISI 304 / 316) |
| Operating Temperature | -40°C to +100°C (depending on resin system) |
Technical Characteristics
| Property | Typical Performance |
| Density | 1.8–2.0 g/cm³ |
| Corrosion Resistance | Excellent |
| UV Resistance | Excellent |
| Electrical Conductivity | Non-Conductive |
| Water Resistance | Excellent |
| Chemical Resistance | Excellent |
| Impact Resistance | High |
| Fire Performance | Flame-retardant options available |

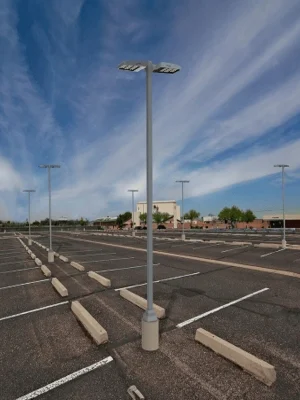

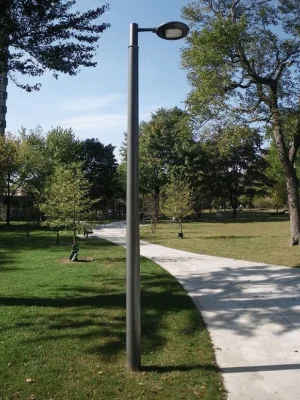

GRP/FRP Light Poles are high-performance composite lighting poles manufactured from glass fiber reinforced polymer using advanced resin systems. Designed for street lighting, area lighting, floodlighting, and decorative applications, these poles provide exceptional corrosion resistance, electrical insulation, UV stability, and long service life. Their lightweight yet high-strength construction allows for easy installation while minimizing maintenance costs. Available in a variety of heights, shapes, colors, and mounting configurations, GRP/FRP light poles are an ideal solution for municipalities, industrial plants, marine facilities, commercial developments, and infrastructure projects operating in harsh environmental conditions.
Product Overview
GRP/FRP light poles are engineered for durability and safety, making them suitable for both urban and industrial lighting applications. They are available in various heights, shapes, colors, and mounting configurations to meet project-specific requirements.
Typical Product Types
- Street Light Poles
- Garden Light Poles
- Decorative Lighting Poles
- Highway Lighting Poles
- Floodlight Poles
- Solar Light Poles
- Campus Lighting Poles
- Car Park Lighting Poles
- Industrial Area Lighting Poles
- Marine Lighting Poles
- CCTV Camera Poles
- Custom Composite Poles
Optional Accessories
- Base Plates
- Anchor Bolts
- Pole Caps
- Single or Double Outreach Arms
- Cable Access Doors
- Internal Cable Routing
- Junction Box Mounting
- LED Luminaire Brackets
- Solar Panel Mounts
- Banner Arms
- Decorative Finishes
Standard Specifications
| Parameter | Typical Specification |
| Material | GRP / FRP Composite |
| Manufacturing Process | Pultrusion / Filament Winding |
| Pole Height | 3 m to 15 m (custom heights available) |
| Pole Shape | Round, Conical, Tapered, Octagonal |
| Surface Finish | UV-Resistant Gel Coat |
| Color | Grey, White, Green, Black, Custom RAL Colors |
| Mounting | Base Plate or Direct Burial |
| Operating Temperature | -40°C to +100°C (depending on resin system) |
Material Composition
- Reinforcement: Continuous E-Glass Fiber
- Resin Systems:
- Polyester
- Vinyl Ester
- Epoxy (special applications)
- Surface Finish: UV-resistant gel coat
- Hardware: Hot-dip galvanized steel or stainless steel
Technical Characteristics
Property | Typical Performance |
Density | 1.8–2.0 g/cm³ |
Corrosion Resistance | Excellent |
UV Resistance | Excellent |
Electrical Conductivity | Non-conductive |
Chemical Resistance | Excellent |
Moisture Resistance | Excellent |
Impact Resistance | High |
Fire Performance | Flame-retardant options available |
